ICC PUDU.
Year
2016
Location
Kuala Lumpur
Architect
Type
Urban Market & Commercial Centre
Scroll to read
|
- Year
- 2016
- Location
- Kuala Lumpur
- Type
- Urban Market & Commercial Centre
- Architect
- Developer
- 1MDB Real Estate Sdn Bhd
- PBM SKUs
- VB 222.150
A wave façade for a market that replaced Imbi Market.

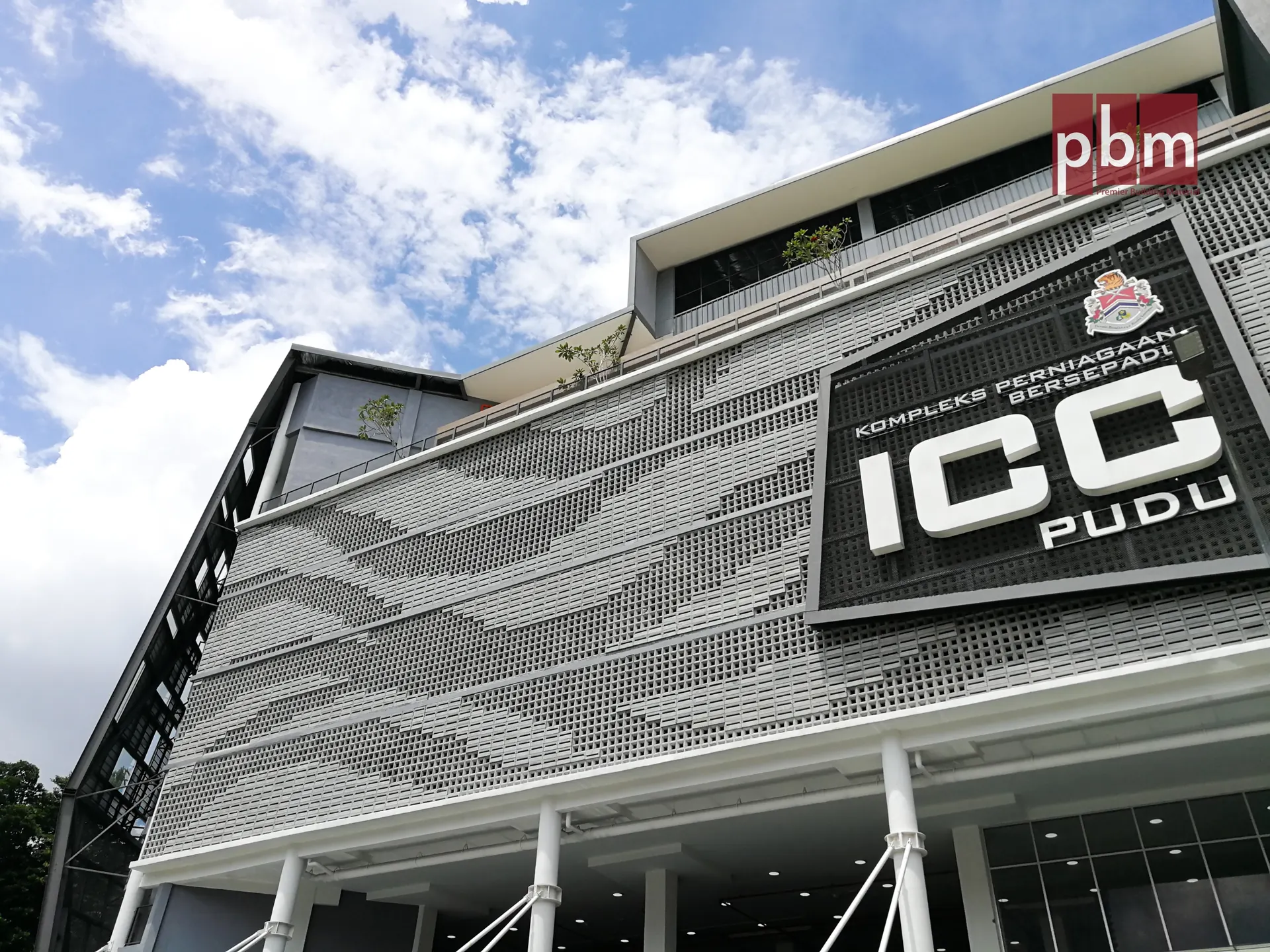

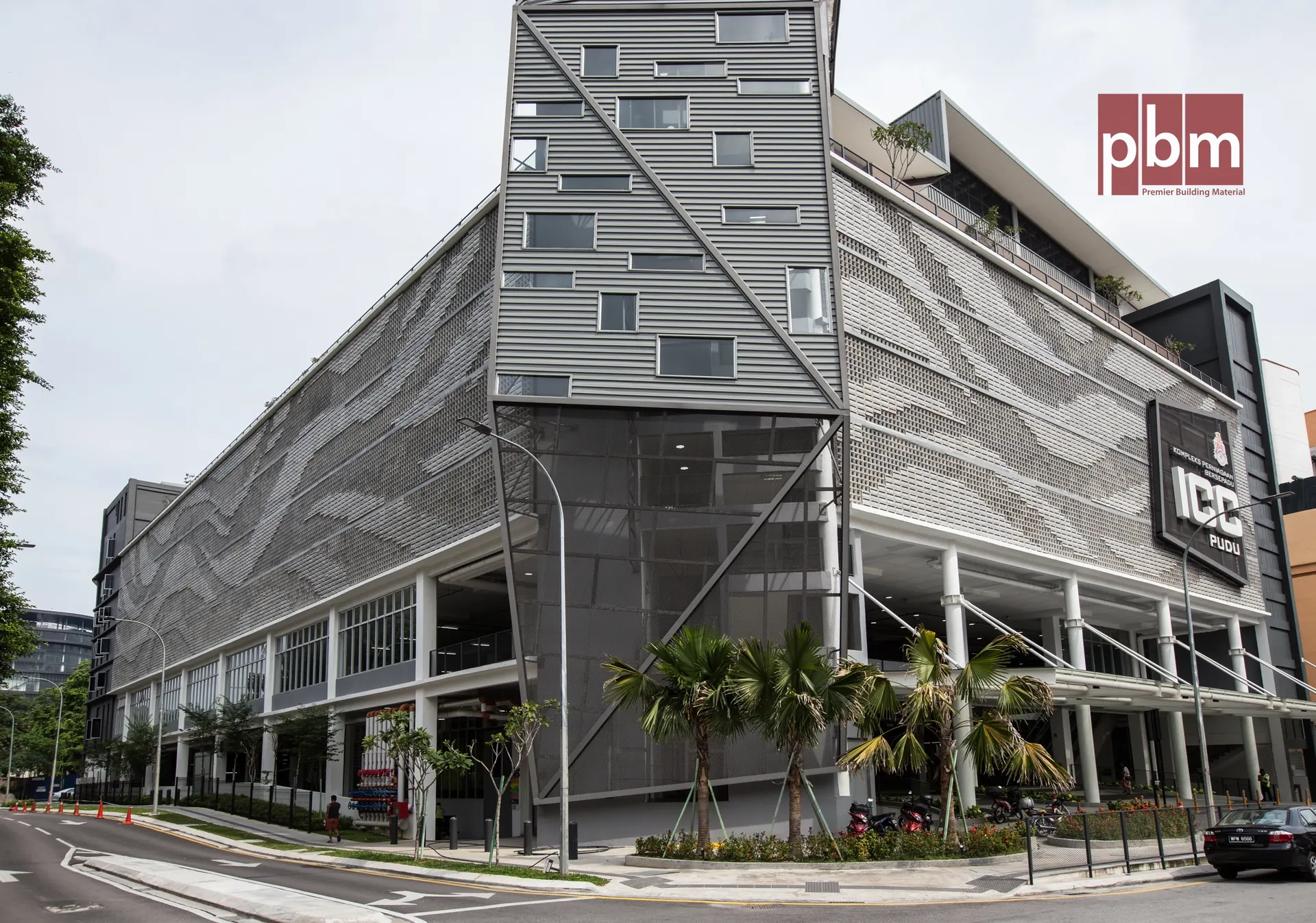

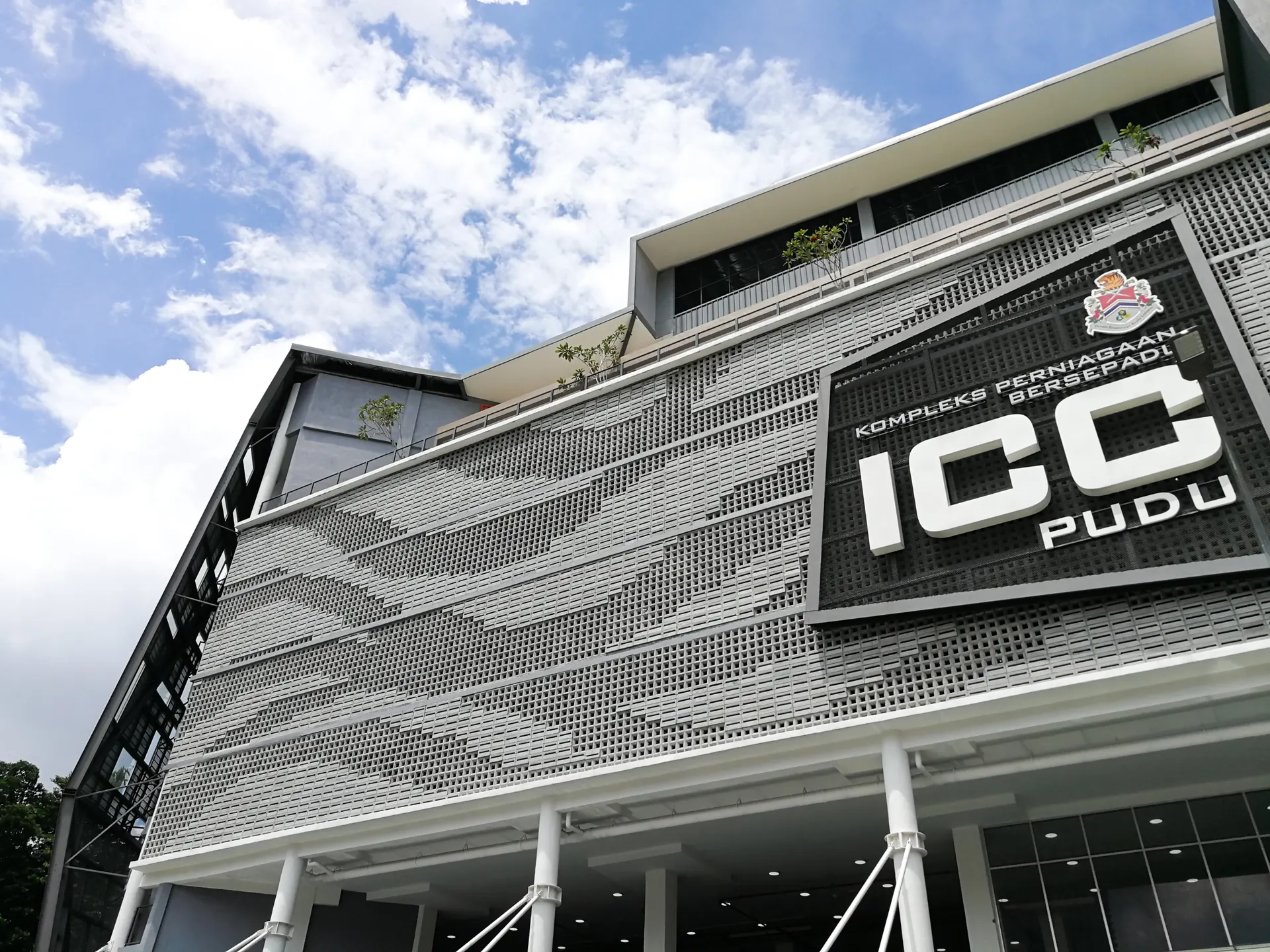

ICC Pudu is a central commercial hub and urban market developed to rejuvenate Kuala Lumpur’s Pudu district. Replacing the historic Imbi Market, this large-scale facility serves as a food court, marketplace, and retail space for local vendors. Designed for high-traffic functionality, the building also incorporates expressive façade treatments to elevate its urban presence.
Use of PBM Ventilation Blocks

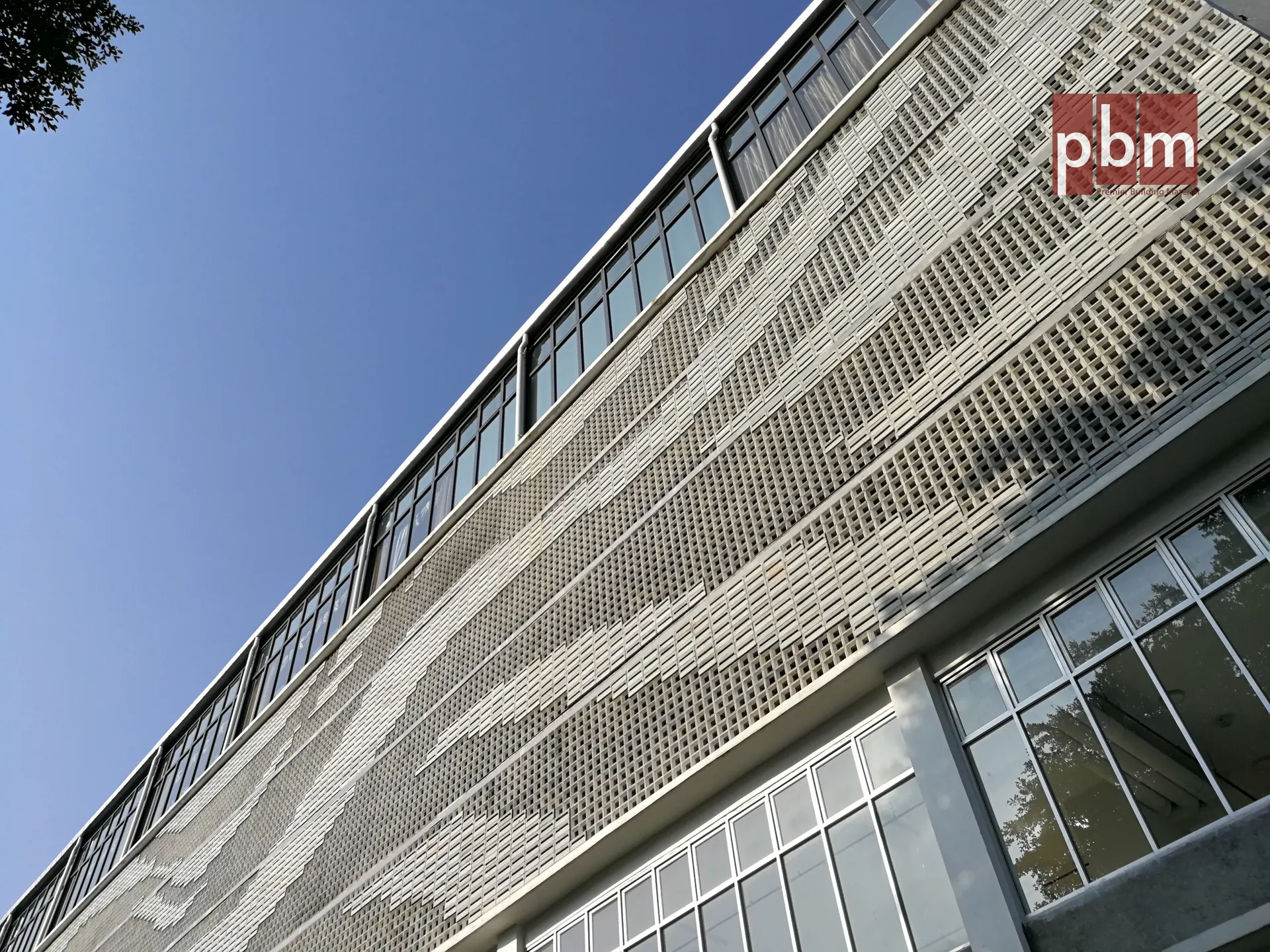

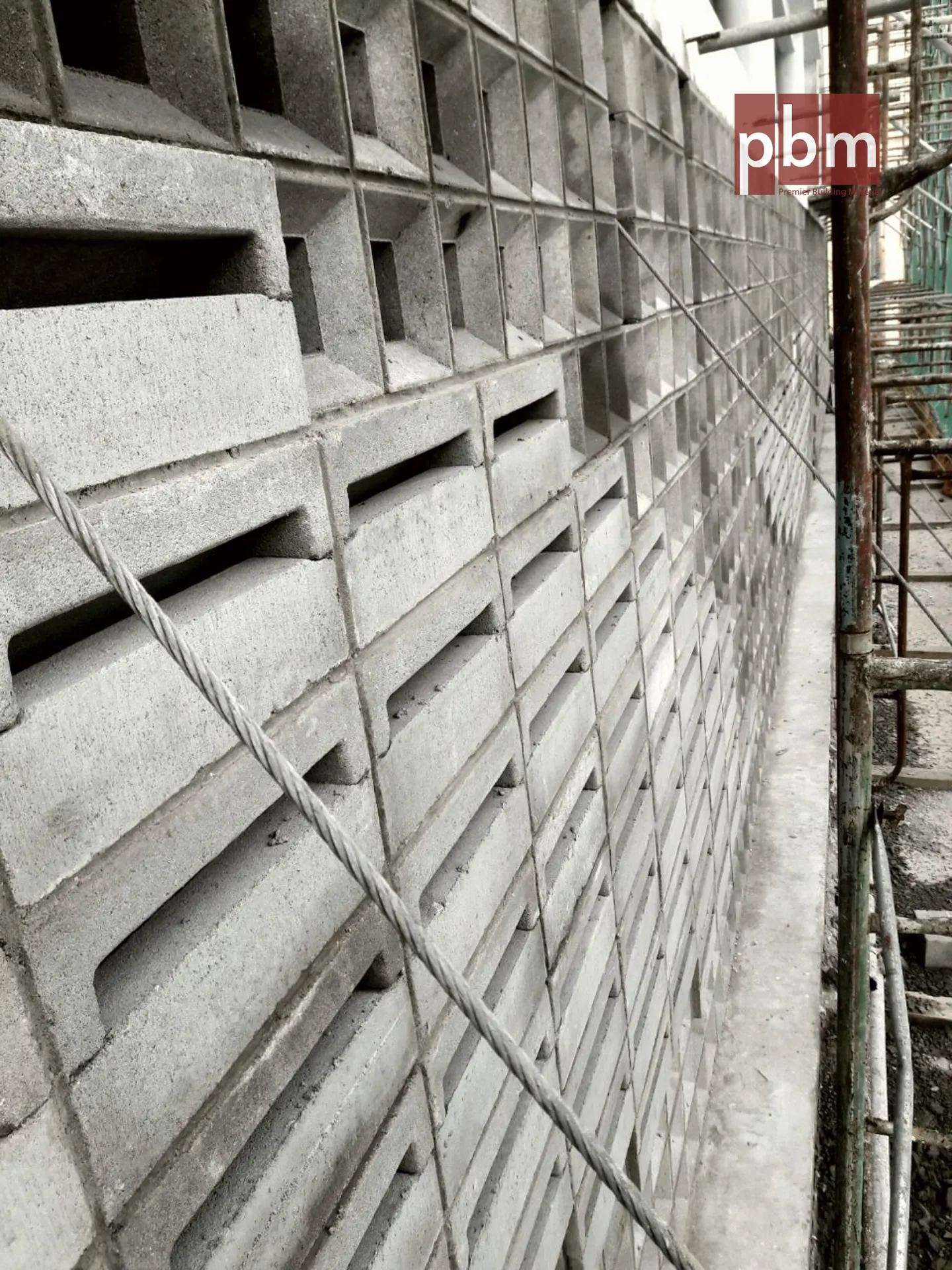

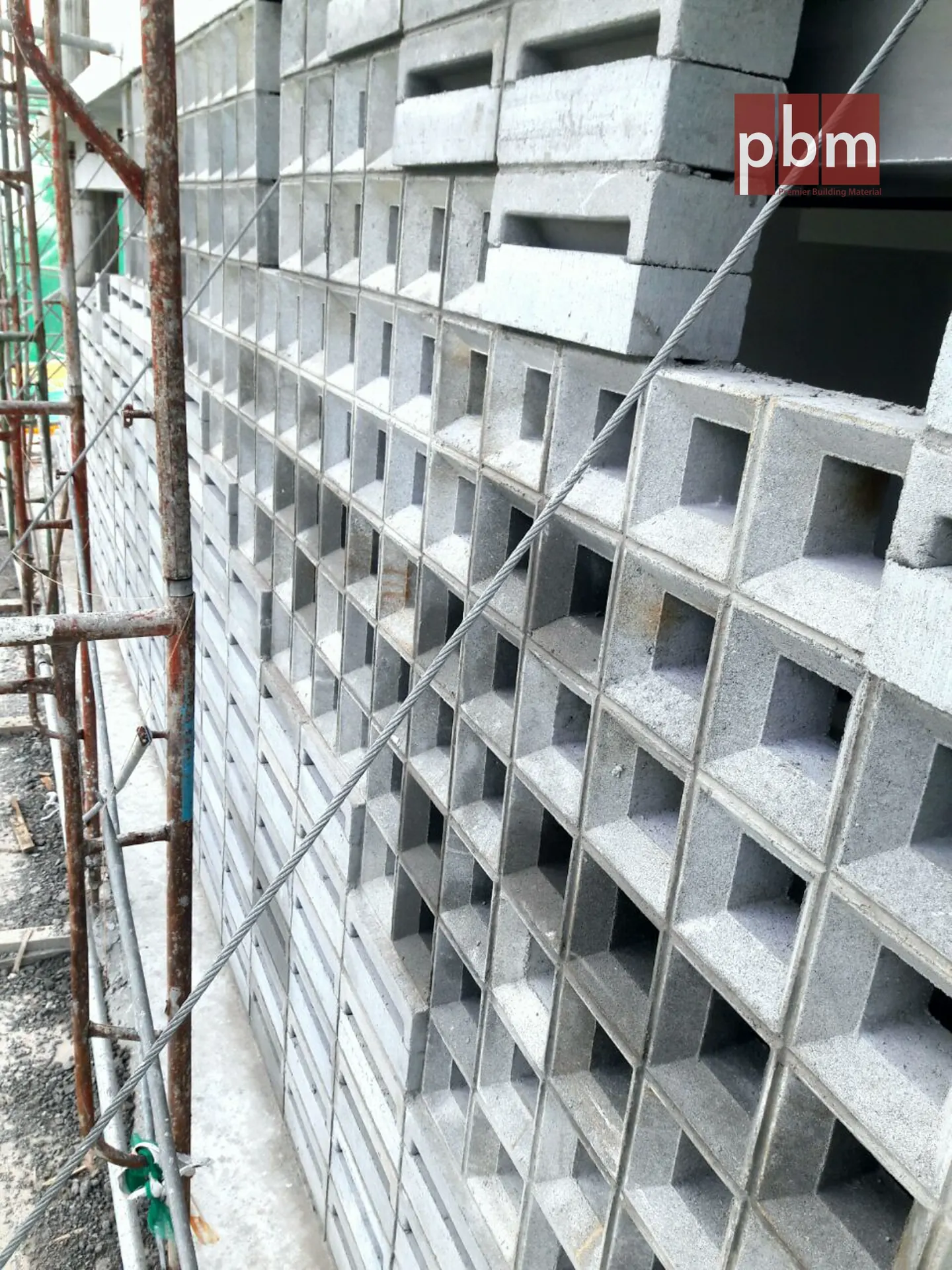

PBM supplied VB 190.45 and VB 222.150 VentBlocks for ICC Pudu’s main building façade. These blocks were selected not only for durability and modularity but also for their complementary proportions, which allowed for a distinctive wave-like pattern across the elevation.
By alternating the two models in sequence:
•The façade gains a layered, kinetic effect
•Depth is introduced through repetitive light-and-shadow interplay
•The design reads as an abstract interpretation of motion and flow — fitting for a vibrant urban marketplace

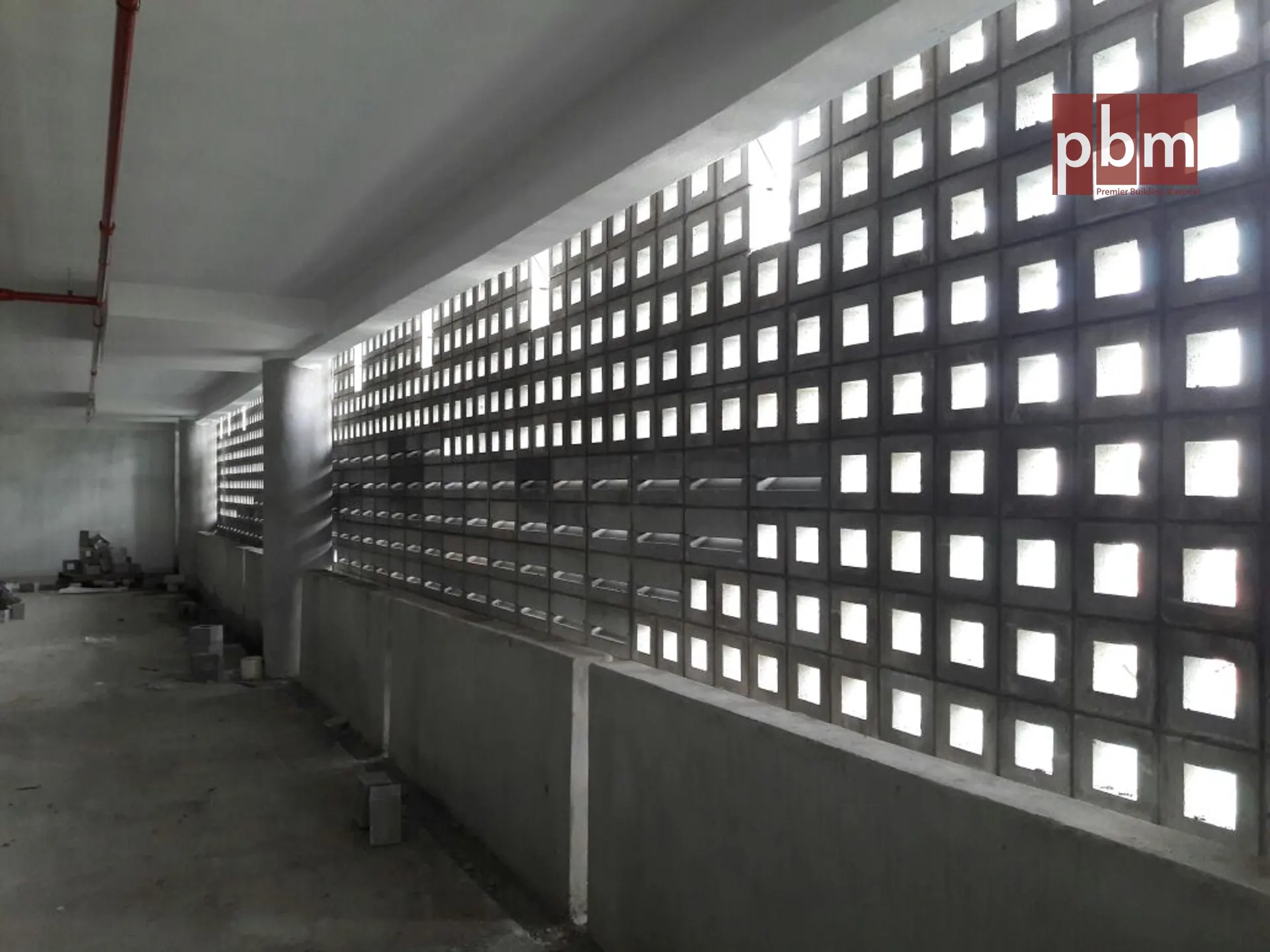

Though traditionally used for ventilation, in this case, the blocks were primarily applied for visual expression and screening in a high-density urban setting.
PBM supplied VB 190.45 and VB 222.150 VentBlocks for ICC Pudu’s main building façade. These blocks were selected not only for durability and modularity but also for their complementary proportions, which allowed for a distinctive wave-like pattern across the elevation.
By alternating the two models in sequence:
•The façade gains a layered, kinetic effect
•Depth is introduced through repetitive light-and-shadow interplay
•The design reads as an abstract interpretation of motion and flow — fitting for a vibrant urban marketplace
Though traditionally used for ventilation, in this case, the blocks were primarily applied for visual expression and screening in a high-density urban setting.
“
'VB 190.45 and VB 222.150 were arranged in an alternating pattern to form a textured wave façade, reflecting the energy and rhythm of Kuala Lumpur's urban market life.'
