XP-L
Product Info
Dimensions (L x W x H)
Unit Weight
Coverage
Packaging
Project References —
Product Description —

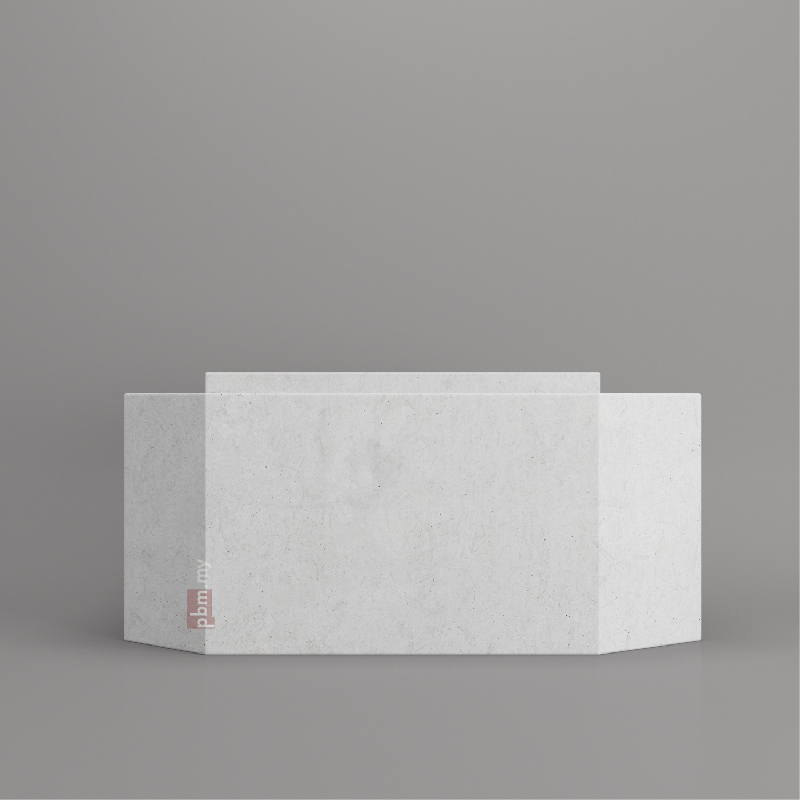

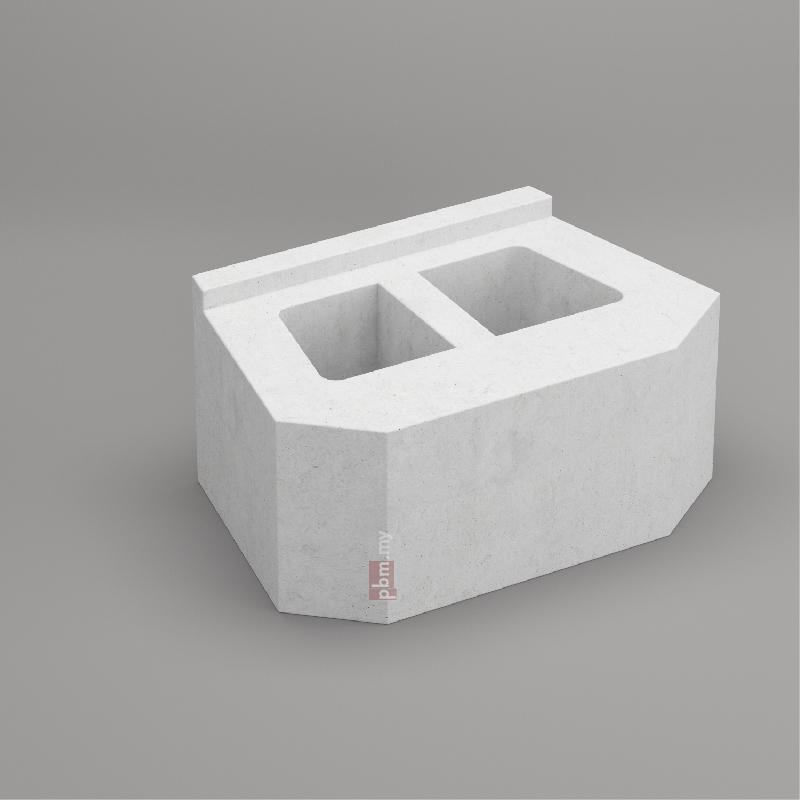

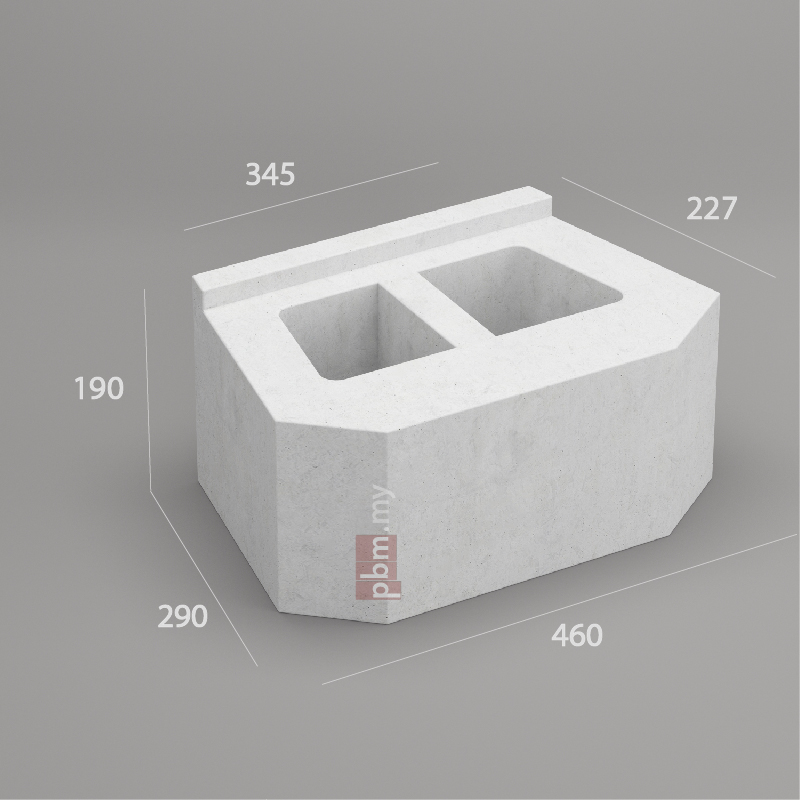

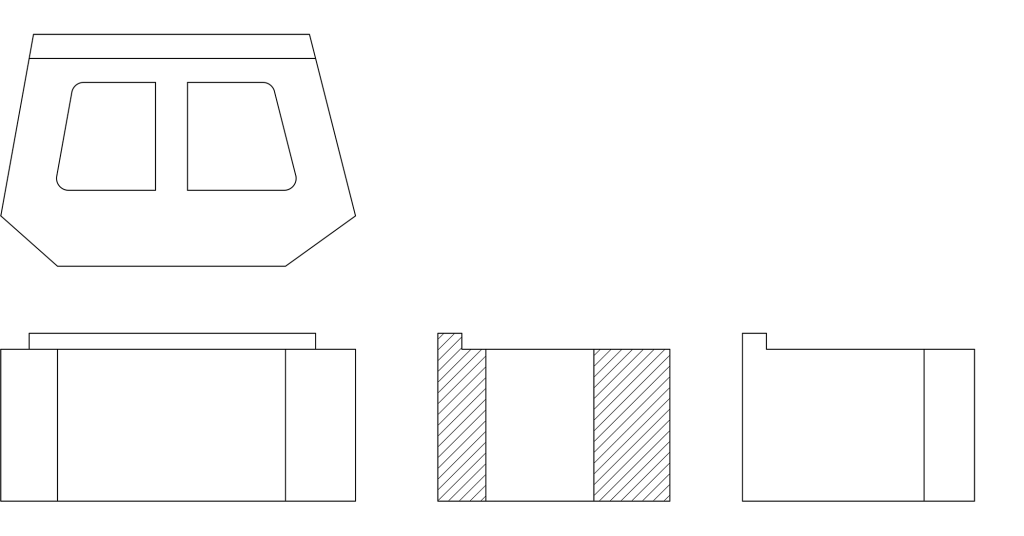

XP-L – large XP Stone trapezoidal hollow retaining wall block in 460 x 290 x 190 mm (base 460 mm tapering to 345 mm at the top). Weighs ±35.0 kg per piece. Supplies 11.44 pcs/m² of wall face. Supplied 48 pieces per pallet. Twin hollow cores accept planting soil or aggregate fill. Used for landscape retaining walls and green wall applications where a soft, vegetated face is required.
Related Products
Application
- Landscaped slopes in residential developments
- Boundary walls on sloped sites
- Erosion control on cut and fill slopes
Key Characteristics
- Precast concrete construction throughout - moulded to a consistent profile across the production run
- Two block families covering soft-edge landscape walls (XP Stone) and engineered stepped-face walls (T Block)
- Hollow cores accept soil, aggregate, or grouted infill - design choice depends on wall height and retained load
Dimensional tolerance: ±3 mm on all stated block dimensions. Colour: Supplied in natural cement grey only. The system is intended to be left exposed, painted, rendered, or planted on site to match the host project. Slight tonal variation between casting batches is normal. Engineering: This is a proprietary precast block range. Wall design – including height, batter, drainage, geogrid reinforcement, and foundation – must be confirmed by the project’s structural or geotechnical engineer for each specific application. Maximum unreinforced wall heights, surcharge loading, and reinforcement specification are project-specific and not implied by the block product itself.
