B400
Product Info
Dimensions (L x W x H)
Unit Weight
Packaging
Type
Product Description —

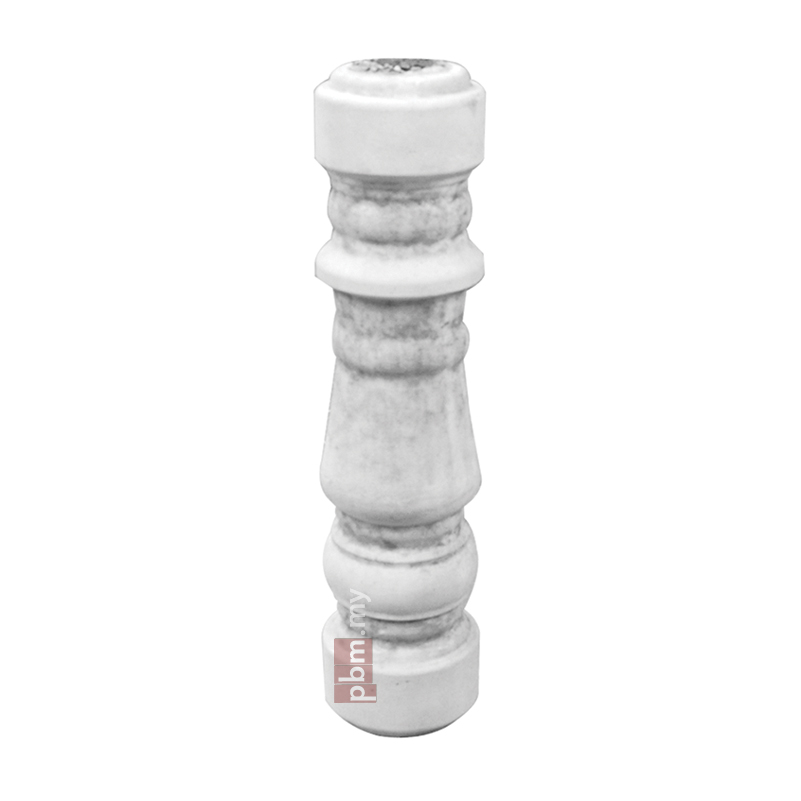

B400 – 400 mm tall turned baluster. Weighs ±3.2 kg per piece. Supplied 100 pieces per pallet. Used for low fence runs, low planter edging, and short porch balustrades.
Application
- Balcony and corridor balustrades on low-rise residential blocks
- Stair and landing balustrades on detached and terraced housing
- Veranda and porch enclosures on bungalows and link houses
- Roof terrace and rooftop garden parapets
- Public park and recreation area enclosures
- Religious building (surau, temple) compound enclosures
Key Characteristics
- Precast concrete construction throughout - posts and cap rails moulded to a consistent profile
- Two profile families to suit modern (Double II) and classical (Balusters) building styles
- Three Double II post heights (400, 600, 800 mm) for varying balustrade heights
- Eight Baluster lengths (300 to 750 mm) for varying balustrade heights
- Surfaces accept paint, render, masonry coating, and stone-effect finishes
Installation Notes
- For Double II: bed bottom U-Panel onto coping with mortar, locate DII posts into the U-Panel rebate, then bed top U-Panel onto the post heads
- Set out post spacing on a continuous reinforced concrete coping, kerb, or low wall capable of carrying the railing dead load and any imposed lateral load
FAQ —
What is the difference between Double II and Balusters?
Double II is a twin rectangular post with a flat U-Panel cap, suited to modern linear architecture. Balusters are turned classical post profiles, suited to traditional and decorative architecture. Both are precast concrete and install onto a continuous coping.
What is the standard centre-to-centre spacing?
DII posts are typically set at 400 mm centres (post width 400 mm plus open span). Baluster spacing is set by the designer to suit the chosen profile and the maximum opening rule under the local building code. Typical baluster spacing is 100 to 150 mm clear opening.
What height of railing can be built?
Choose post height to match the required railing height. DII 400 suits low fence and rooftop parapet applications; DII 600 suits standard balcony balustrades; DII 800 suits stair and elevated platform balustrades. Balusters in the 600 to 750 mm range cover the same height applications as the DII series.
Are the railings supplied painted or finished?
No. Posts and caps are supplied in natural cement grey. Painting, rendering, or any decorative finish is applied on site.
